Instrument Cluster

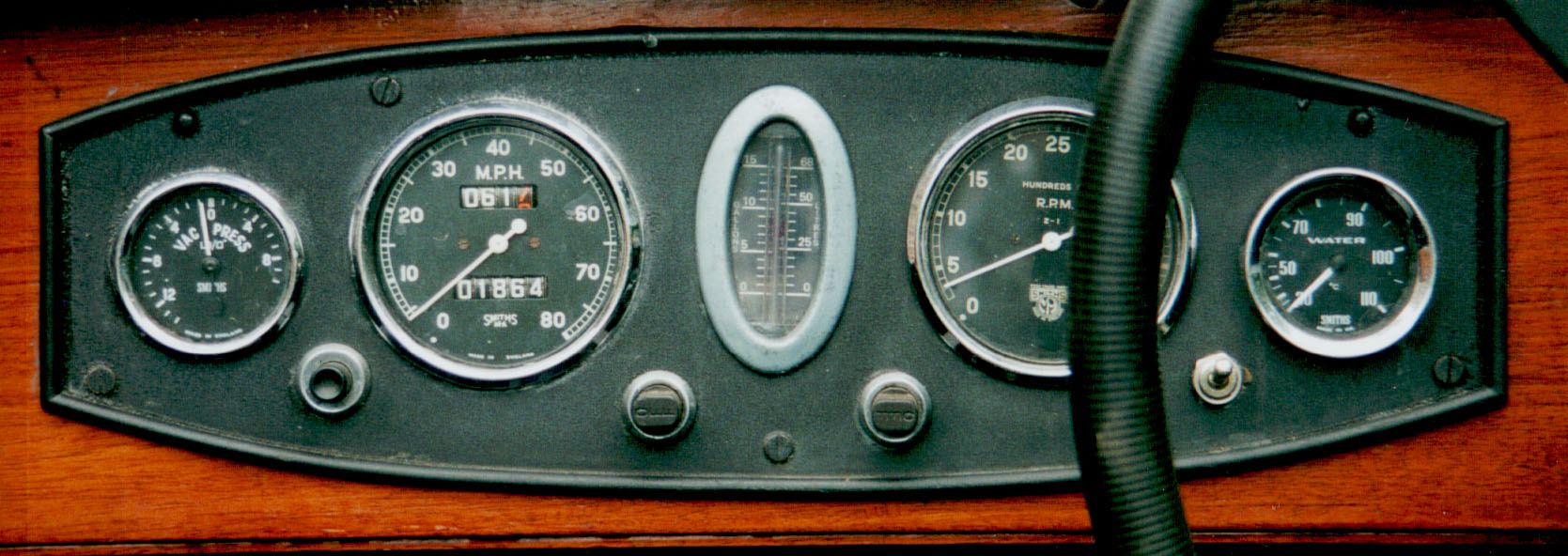

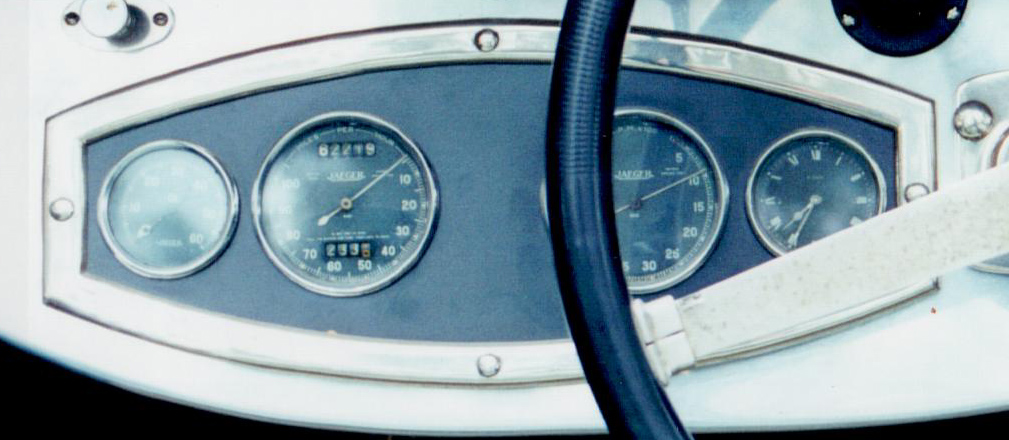

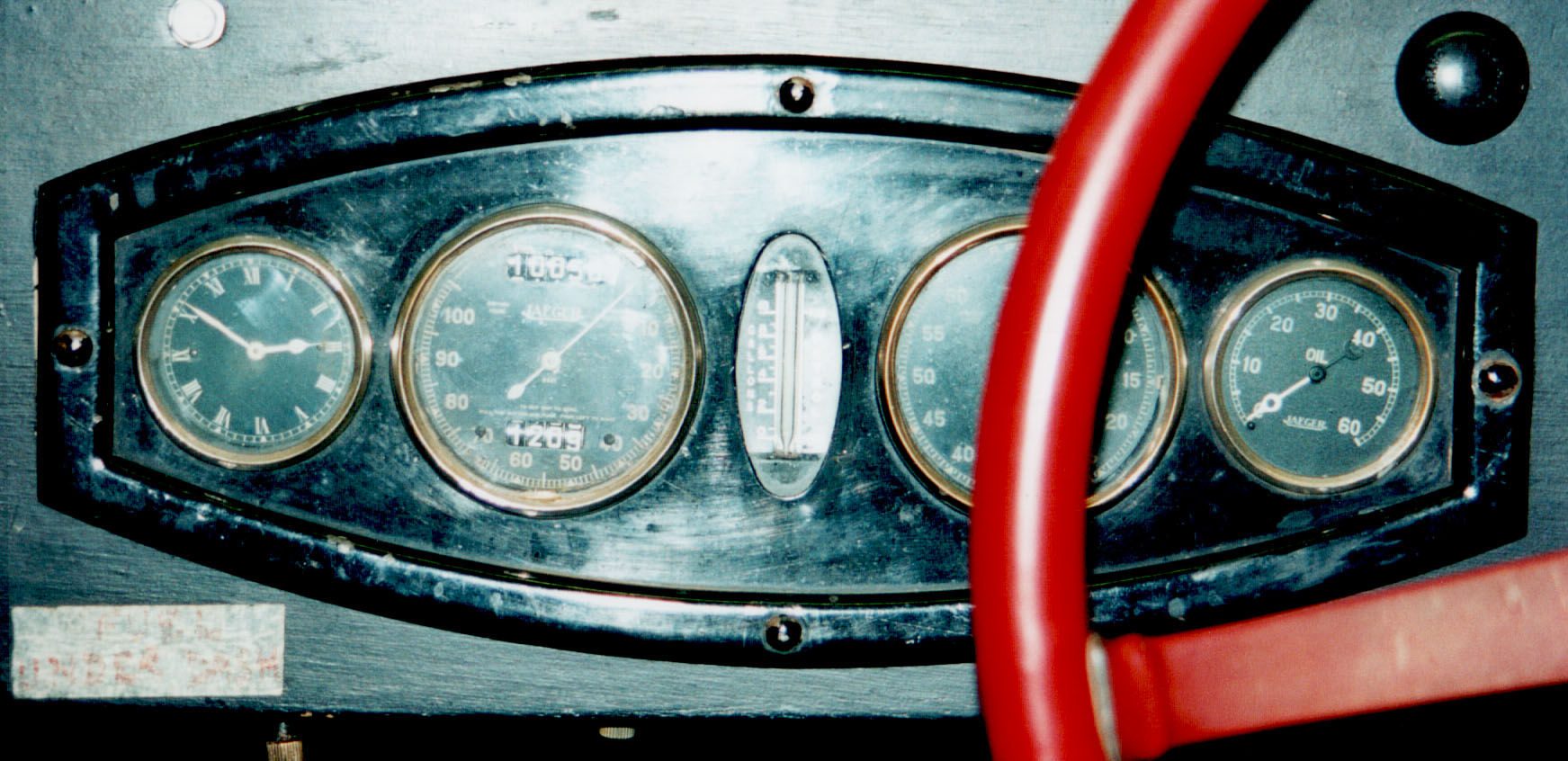

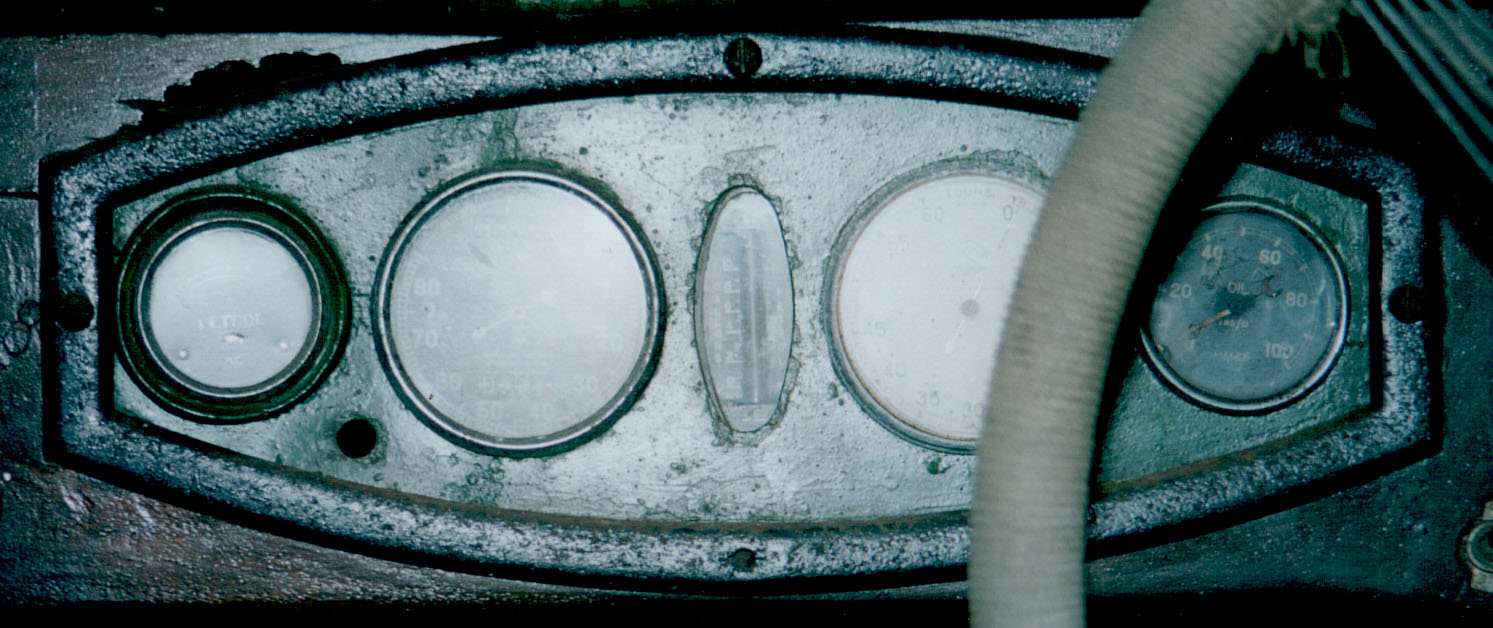

This comprises a pressed
steel plate with a raised rim, in which the following Jaeger instruments were
fitted (from left to right): 60mm 8-day clock; 80mm chronometric 100 mph
speedometer; 80mm 6000 rpm rev counter; 60mm oil pressure gauge, usually reading
to 60psi. In the centre, between the speedo and the rev counter, some cars
had a Hobson Telegauge―a manometer indicating the fuel level.
Click on
thumbnail to view higher resolution image. Right-click to save to file.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Jaeger advert for a similar panel, dated 1927. |
|
|
|
|
|
|
|
|
