Steering Wheels
The FA and FB type cars had a
rigid steering column, with hand throttle, ignition controls and horn button on
the centre boss of the wheel. On the later FD and FE cars, a flexible
joint was introduced in the steering column, which meant that these items would
have to be relocated onto the dashboard.
It is believed that the
earlier cars had "René Thomas" sprung spoke steering wheels, while the later cars including all the FD
and FE types used 18 inch "Bluemels" wheels, as described at
this link.
Click on
thumbnail to view higher resolution image. Right-click to save to file.
|
|
|
|
|
|
|
|

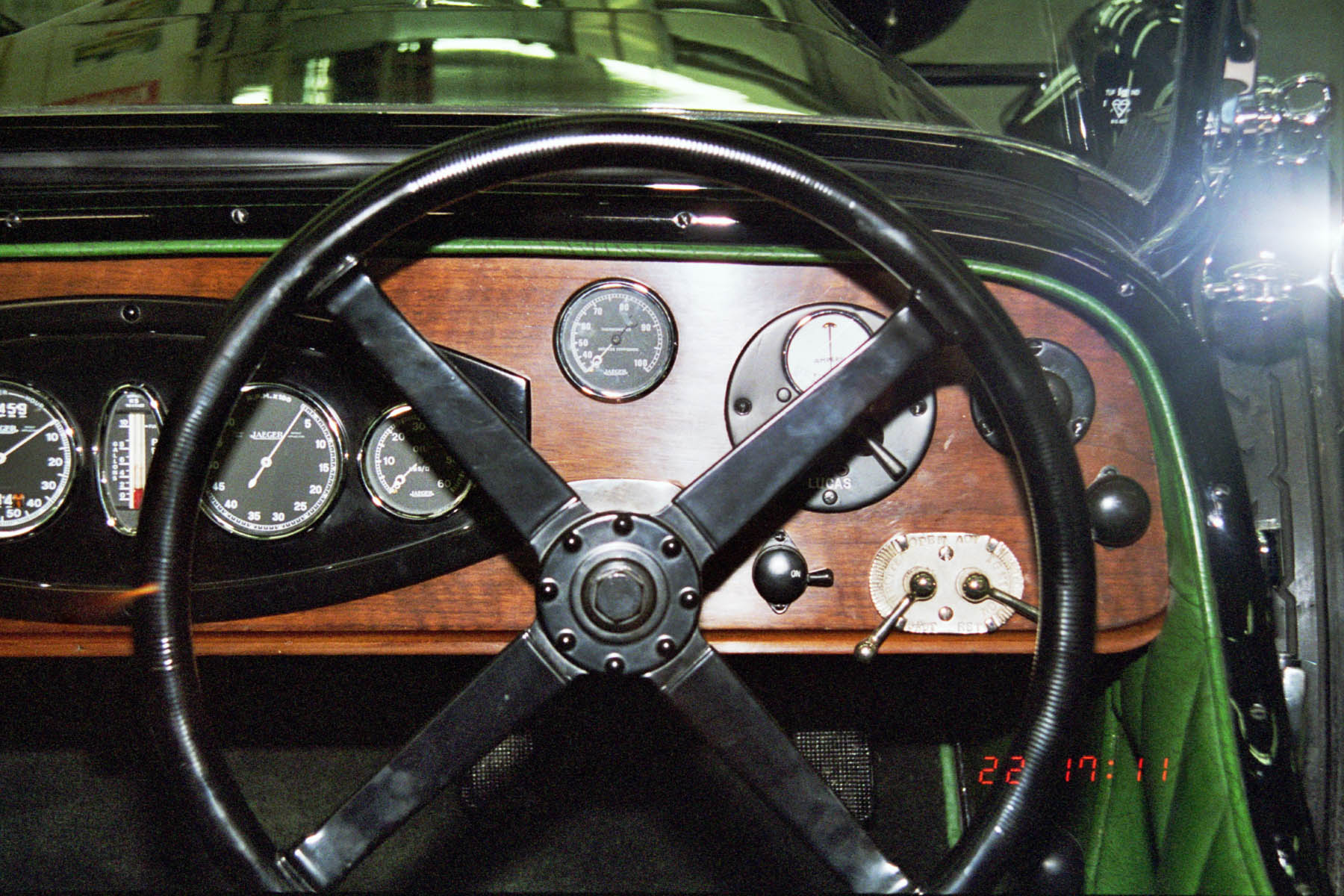

Chassis 7315 |
|
Later type wheel. |
|
|
|
|
|
|
|
|
|
|
|
|
|

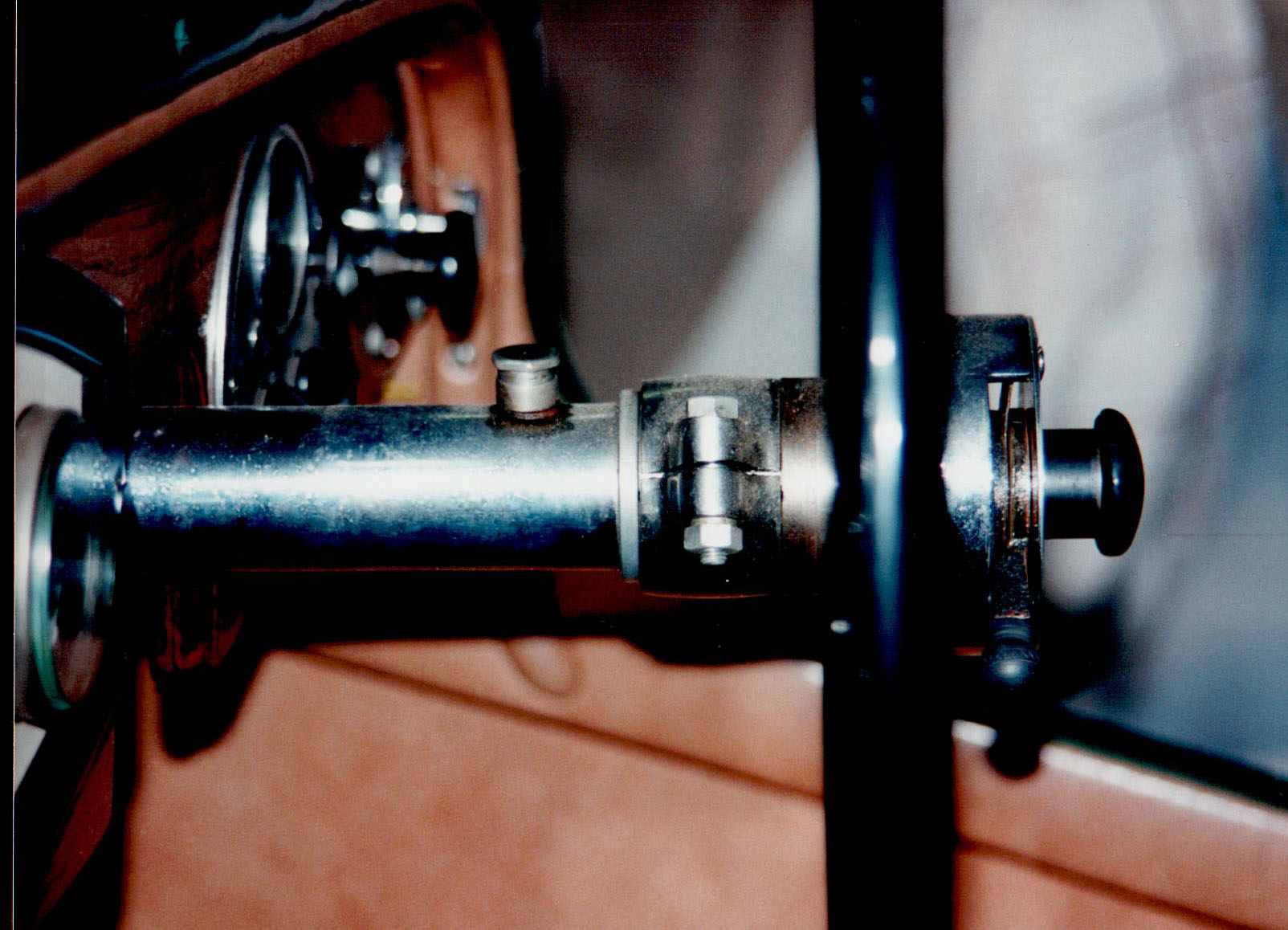

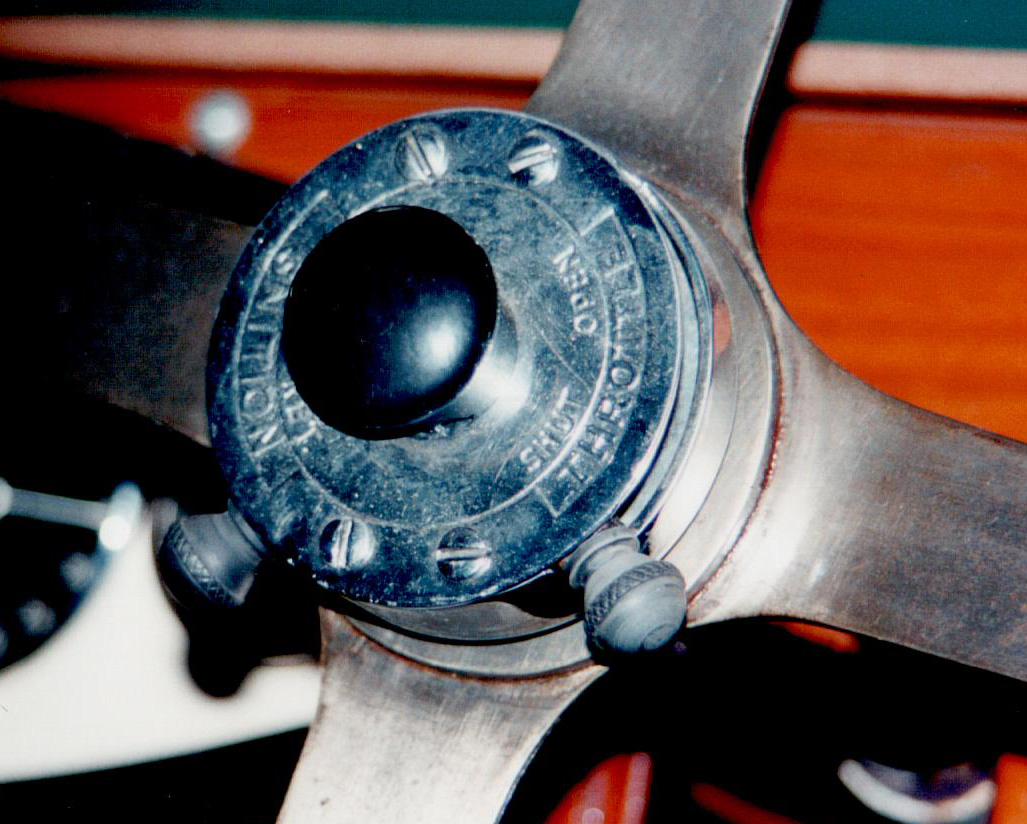

Chassis 6992, early FA type, looking correct in every detail. This car has a "René Thomas" steering wheel. |
|
|
|
|
|
|
|
|
|
|
|
|
|

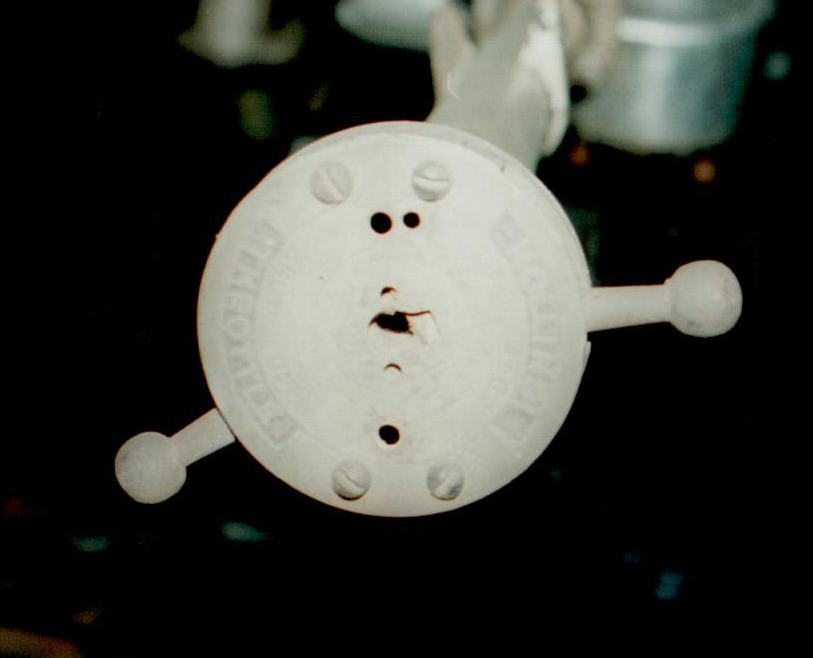

Chassis 7210. Another early type steering column, horn button missing. This item came from chassis 7035 (an FA type) originally. |
|
|
|
|
|
|
|
|
|
